LA-26 / LA-26S PROFESSIONAL LINE ARRAY SYSTEM

Power 350W(RMS) 700W(PEAK)

Frequency Response 55Hz-20KHz

Sensitivity 97dB/1W/1M

Nominal Impedance 8Ω

2x6” two-way line array system

Technial Parameter

LA-26

LF Unit: 2x6.5" (45mm) Driver Unit

HF Unit: 1x44mm Driver Unit

Power: 350W (RMS) 700W (PEAK)

Frequency Response: 55Hz-20KHz (±3dB)

Sensitivity: 97dB / 1W / 1M

Max. SPL: 126dB (RMS) 132dB (PEAK)

Nominal Impedance: 8Ω

Cover Range: 100°x N°（H x V）

Hanging Hardware: Bracket

Handle: 2

Connector: 2×NL4 Socket, +1, -1

Box Material: CNC manufacturing, high density poplar plywood

Weight: 21kg

Size(W×D×H）: 550x418x234mm

LA-26S

LF Unit: 1x15" (100mm) Line Array Subwoofer Unit

Power: 500W (RMS) 1000W (PEAK)

Frequency Response: 35Hz-3000Hz (±3dB)

Sensitivity: 98dB / 1W / 1M

Max. SPL: 120dB (RMS) 126dB (PEAK)

Nominal Impedance: 8Ω

Hanging Hardware: Bracket

Handle: 2

Connector: 2×NL4 Socket, +1, -1

Box Material: CNC manufacturing, high density poplar plywood

Weight: 40kg

Size(W×D×H）: 733x500x546mm

Applications

Outdoors

Indoors

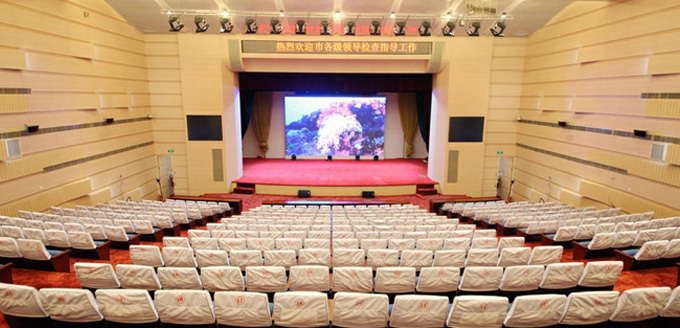

Assembly Hall

Lecture Hall

Outdoor Activities

Outdoor Games
